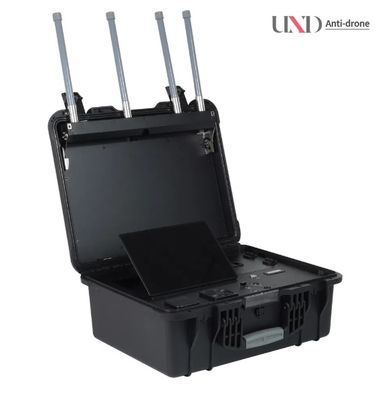

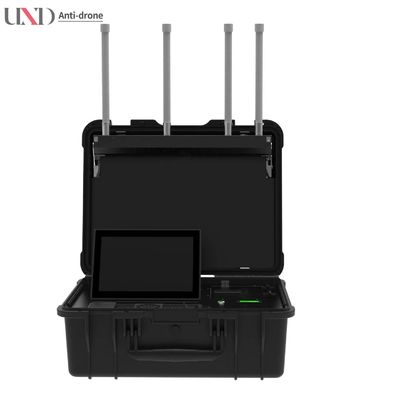

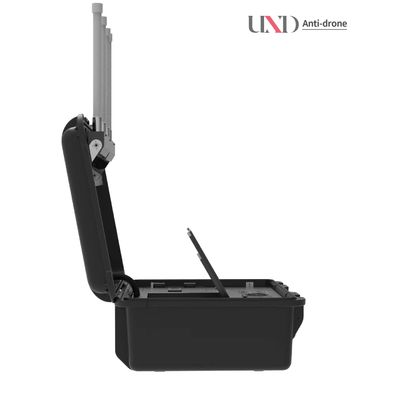

Long Range 1-10km UAV Drone Detection Security Signal Detector 360 Degree Omnidirectional Drone Locator

  • Long Range 1-10km UAV Drone Detection Security Signal Detector 360 Degree Omnidirectional Drone Locator
  • Long Range 1-10km UAV Drone Detection Security Signal Detector 360 Degree Omnidirectional Drone Locator
  • Long Range 1-10km UAV Drone Detection Security Signal Detector 360 Degree Omnidirectional Drone Locator
  • Long Range 1-10km UAV Drone Detection Security Signal Detector 360 Degree Omnidirectional Drone Locator
  • Long Range 1-10km UAV Drone Detection Security Signal Detector 360 Degree Omnidirectional Drone Locator
  • Long Range 1-10km UAV Drone Detection Security Signal Detector 360 Degree Omnidirectional Drone Locator
Lieu d'origine Shaanxi, Chine
Nom de marque UND
Quantité de commande min 1
Prix $12,000-12,800

Contactez-moi pour des échantillons gratuits et des coupons.

Quel est l'app?:0086 18588475571

Wechat: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Application Protection contre la sécurité Fonctionnalité durable
Taper Détecteur de signal Gamme 1-10km (varient en fonction de l'environnement et du modèle de drone)
Mode de travail Détection RF, déchiffrement de protocole. Fréquence 900 MHz,10,2 GHz,20,4 GHz,50,2 GHz,50,8 GHz
Détection de drones Détectez divers drones, notamment DJI, WiFi, FPV Détection d'essaim ≥ 5 drones
Mettre en évidence

long range UAV drone detector

,

360 degree omnidirectional drone locator

,

1-10km drone detection security signal detector
Laisser un message
Description de produit



Product Description

UAV Drone Detection Long Range 1-10km Drone Signal Detector 360 degree Omnidirectional Drone DetectorModel: U-H1C

I.Overview

U-H1C drone detector is a portable drone monitoring platform, used for detection, identification, location and tracking of drones and pilots.

U-H1C is suitable for drone monitoring in scenarios such as major events, daily security patrol, VIP secret service, critical infrastructure etc. It works offline or online, with option to connect multiple devices to cover large area. It is highly portable, easy to carry and use, ready to deploy in seconds.



Long Range 1-10km UAV Drone Detection Security Signal Detector 360 Degree Omnidirectional Drone Locator 0






Specification
Specification
Model
U-H1C
Omni Work Frequency
900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2G, 5.8GHz
Detection Range
1~8km
Probe Azimuth
≤30 (UAV does not change the frequency during the locked DF mode and is 1-2 km from the device)
Altitude
0~1000m
Drone Swarm Detection
≥5 Drones
Detection Result Refresh Time
4~6s (Varies due to environment and drone model)
Azimuth Error
≤1.5° (RMS)
Location Error
≤10m
Ready to Use
≤120s
Working Temperature
-20℃~65℃
Weight
≤18kg Adaptor Excluded
Size
235 X 66 X43mm
Weight
800g (Excluding the antenna)



3.Functions
1.Drone detection and identification: U-H1C detects and identifies various name brand drones such as DJI and AUTEL, as well as WiFi drones, FPVs, some DIY drones;
2.Trajectory tracking and display: The real-time flight trajectory of the tracked drones can be displayed on the GIS map;
3.Pilot position display: The position of the pilot (remote controller) can be tracked and displayed, and the location information can be updated in real time;
4.Drone detailed information monitoring: The detailed information of drones and pilots can be displayed in real time, including: drone ID, frequency, latitude and longitude, model, altitude, height, pilot latitude and longitude, distance between the device and the pilot (or the distance between the drone and the reference point) and other information.

5.Sole identity: For each drone, U-H1C can identify its unique S/N number;

6.Black and white list: Distinguish between "friend" and "foe", U-H1C will not alarm when a "friend" drone is detected, a "friend" or "foe" can be tagged (only support DJI series drones);









Long Range 1-10km UAV Drone Detection Security Signal Detector 360 Degree Omnidirectional Drone Locator 2

Long Range 1-10km UAV Drone Detection Security Signal Detector 360 Degree Omnidirectional Drone Locator 4


3.Functions
1.Drone detection and identification: U-H1C detects and identifies various name brand drones such as DJI and AUTEL, as well as WiFi drones, FPVs, some DIY drones;
2.Trajectory tracking and display: The real-time flight trajectory of the tracked drones can be displayed on the GIS map;
3.Pilot position display: The position of the pilot (remote controller) can be tracked and displayed, and the location information can be updated in real time;
4.Drone detailed information monitoring: The detailed information of drones and pilots can be displayed in real time, including: drone ID, frequency, latitude and longitude, model, altitude, height, pilot latitude and longitude, distance between the device and the pilot (or the distance between the drone and the reference point) and other information.

5.Sole identity: For each drone, U-H1C can identify its unique S/N number;
6.Black and white list: Distinguish between "friend" and "foe", U-H1C will not alarm when a "friend" drone is detected, a "friend" or "foe" can be tagged (only support DJI series drones);


ABOUT US

Long Range 1-10km UAV Drone Detection Security Signal Detector 360 Degree Omnidirectional Drone Locator 6Long Range 1-10km UAV Drone Detection Security Signal Detector 360 Degree Omnidirectional Drone Locator 8



Long Range 1-10km UAV Drone Detection Security Signal Detector 360 Degree Omnidirectional Drone Locator 10

Certification



Long Range 1-10km UAV Drone Detection Security Signal Detector 360 Degree Omnidirectional Drone Locator 12Long Range 1-10km UAV Drone Detection Security Signal Detector 360 Degree Omnidirectional Drone Locator 14




1.Why Choose us?

We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2.What is the process of placing an order?

First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.
